Common Problems with Air Cooled Mini Chillers and How to Prevent Them

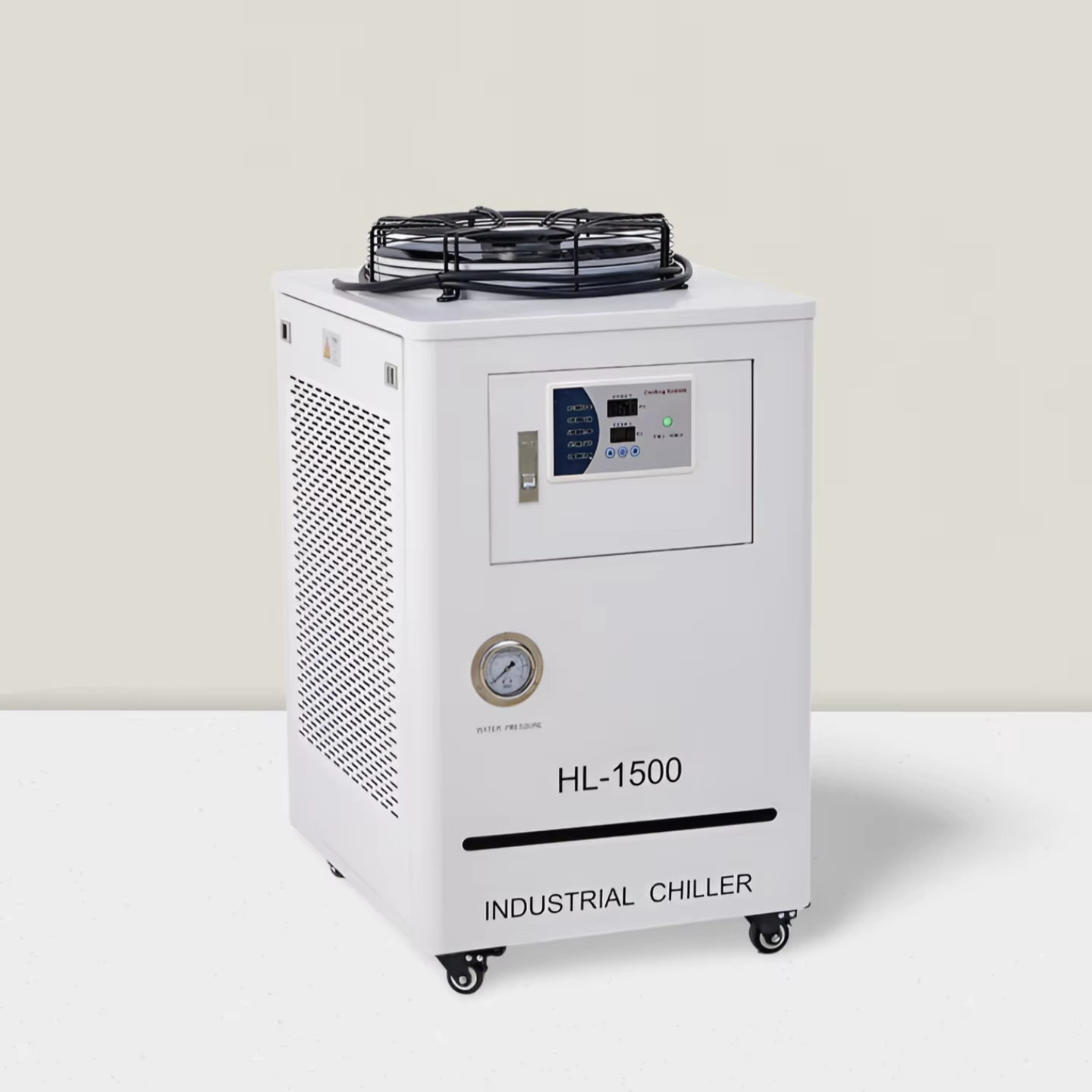

How Air Cooled Mini Chillers Work and Key Components to Monitor

Core components: compressor, condenser, evaporator, and expansion valve

Air cooled mini chillers work using what's called a vapor compression cycle, and there are basically four main parts involved in making this happen. First off, the compressor takes refrigerant gas and cranks up the pressure, which makes it really hot around 150 to 180 degrees Fahrenheit. This superheated gas then moves over to the condenser section where those aluminum finned tubes kick in. The fans blow ambient air across these tubes to dissipate all that heat. After cooling down, the refrigerant turns back into liquid form and goes through an expansion valve that controls how much flows through and at what pressure. Finally, it reaches the evaporator, which acts like a heat grabber taking warmth away from either process water or glycol mixtures. Take a look at typical models: smaller units like 30 ton air cooled chillers usually have scroll compressors handling about 360k BTUs per hour. But when we get into bigger systems over 100 tons, industrial installations tend to switch to screw compressors instead because they handle higher volumes better.

Refrigerant flow and pressure dynamics in air cooled mini chiller efficiency

Getting good system performance really comes down to keeping refrigerant pressure levels in check. When suction pressure drops between 10 and 20 psi in the evaporator section, the refrigerant boils around 40 to 50 degrees Fahrenheit (that's about 4 to 10 Celsius), which pulls heat away from whatever needs cooling. On the other side of things, condensers need to hold those high pressures, typically somewhere between 150 and 300 psi, so they can properly release all that collected heat. Things get tricky when there's not enough refrigerant charge or when filter dryers become blocked. These issues create pressure problems that can cut cooling power by anywhere from 15% to 25%. The numbers come straight from standard HVAC performance guidelines, but what it really means is lost efficiency and higher energy costs for anyone running these systems.

Differences between air cooled and water-cooled systems in operation and maintenance

Mini chillers that cool via air simply push heat out into the surrounding environment instead of relying on those complicated cooling towers and water treatment setups needed for water-cooled alternatives. Installation becomes much simpler this way, plus there's no worry about scale buildup messing up the condenser loop over time. But here's the catch - when temperatures climb past around 95 degrees Fahrenheit (or 35 Celsius), these air cooled systems tend to lose about 10 to maybe even 15 percent efficiency compared to their cooler counterparts. As far as upkeep goes, things look different too. Air cooled units need someone to clean those coils every three months or so just to keep proper airflow going through them. Water cooled systems on the other hand require constant checking of water quality parameters to stop corrosion from taking hold, which can be quite a hassle during peak seasons.

Refrigerant and Pressure Issues: Causes and Solutions for Air Cooled Mini Chillers

Low Suction Pressure: Refrigerant Undercharge, Evaporator Fouling, and Blockages

Low suction pressure typically results from three main issues:

• Refrigerant undercharge, which reduces heat transfer and increases compressor workload
• Evaporator fouling due to mineral deposits or biological growth that insulates heat exchange surfaces
• Blockages in filter dryers or expansion valves restricting refrigerant flow

These problems often appear as frost on evaporator coils and extended cooling cycles. A 2023 HVAC industry report found that evaporator-related faults account for 28% of low-pressure alerts in chillers under five years old.

High Suction Pressure: Overcharging and Impact of High Ambient Temperatures

Overcharging refrigerant, especially during high outdoor temperatures (95°F/35°C), can cause liquid to accumulate in the condenser, increasing suction pressure by 15–20% above design levels. This condition raises the risk of liquid slugging and compressor damage. Signs include abnormal vibrations and frequent high-pressure shutdowns.

Detecting and Repairing Refrigerant Leaks to Prevent System Imbalance

Effective leak detection combines ultrasonic detectors (90% accuracy), infrared thermal imaging, and dye injection systems. Field service data shows that seal weld repairs and flare nut replacements fix 73% of leaks in copper refrigerant lines. After repairs, always evacuate and recharge the system to factory specifications to restore optimal performance.

The Risk of Repeated Refrigerant Topping Without Fixing Underlying Leaks

Topping off refrigerant without repairing leaks leads to recurring losses—microleaks can deplete 12–18% of charge monthly. This practice increases energy consumption by 8–10% per cycle and risks compressor oil dilution and bearing failure, significantly raising long-term operational costs.

Insufficient Cooling and Flow Problems: Airflow and Waterflow Challenges

Reduced Cooling from Dirty Condenser Coils and Restricted Airflow

When condenser coils get dirty, they lose their ability to transfer heat efficiently, sometimes dropping performance by around 30-35%. This forces compressors to work overtime, running longer cycles and putting extra strain on the system. The problem gets worse when debris builds up in those delicate fin structures or when fans start to fail, both situations that severely limit proper airflow and lead to dangerous overheating conditions. According to recent industry research from ASHRAE in 2023, nearly three quarters of all mini chiller inefficiencies traced back to neglected coil maintenance issues. Keeping these systems performing well requires regular cleaning with vacuums and occasional straightening of bent fins once a year, which helps maintain good airflow patterns and extends equipment lifespan significantly.

Water Flow Issues: Clogs, Scaling, and Corrosion in the Chilled Water Loop

Clogged strainers, mineral buildup, and pipe corrosion reduce chilled water flow, leading to temperature differentials exceeding 4°F (2.2°C) across the evaporator—an early sign of flow restriction. Closed-loop systems using inhibited glycol solutions experience 60% fewer scaling incidents than those using untreated water, according to the Cooling Technology Institute (2022).

Pump Degradation and Inadequate Pumping Capacity

Impeller erosion and bearing wear can reduce pump capacity by 15–20% annually. Symptoms include fluctuating pressures and ice formation on evaporators. Comparing actual pump performance to manufacturer curves during seasonal maintenance helps detect degradation early.

Case Study: Restoring Efficiency by Cleaning Fouled Evaporator Tubes

A Midwest manufacturing plant resolved chronic cooling issues by chemically cleaning calcium-fouled evaporator tubes. The treatment restored approach temperatures to 3°F (1.7°C) and reduced energy use by 18%. The facility now conducts monthly water conductivity tests to prevent future scaling.

Electrical, Control, and Startup Failures in Air Cooled Mini Chillers

Troubleshooting Power Supply and Control Panel Faults

Around 35 percent of all problems with air cooled mini chillers come down to electrical issues. Things like loose connections, breaker trips, or those pesky failing relays inside control panels are common culprits when these units won't start up properly. When doing routine checks every three months, technicians need to make sure voltages match across different phases and give those terminal points a good look for any signs of corrosion buildup. Most control panel troubles can actually be fixed just by clearing out error messages and running tests on how well the relays work their magic. About six out of ten times, there's no need to replace parts at all once these basic diagnostics get sorted out.

Low Coolant Level as a Common Cause of Chiller Startup Lockout

When refrigerant levels drop below what manufacturers consider safe, most safety systems will automatically shut down the chiller to prevent harm to the compressor. But guess what usually causes this problem? Often it's those pesky little leaks hiding in valves or somewhere along the coils that nobody notices until it's too late. Just topping off the refrigerant without tracking down and sealing those leaks only delays the inevitable. The system keeps locking out again and again, which means higher bills for everyone involved. Some studies suggest maintenance costs can jump as much as twenty percent because of all that wasted refrigerant plus the fact that the whole system just doesn't run as efficiently anymore once there's been a leak.

Sensor Malfunctions and False Alarms Disrupting Chiller Operation

Faulty temperature or pressure sensors can send incorrect data to the control system, triggering unnecessary shutdowns. A 2023 field study found that 42% of false alarms in mini chillers near heavy machinery resulted from vibration-damaged sensors. Biannual calibration and replacing sensors exposed to extreme conditions improve system reliability.

Preventative Maintenance Strategies to Avoid Air Cooled Mini Chiller Breakdowns

Creating a Preventive Maintenance Schedule for Optimal Chiller Performance

A tailored maintenance plan prevents 78% of common failures in air cooled mini chillers. Prioritize compressor lubrication, refrigerant levels, and condenser fan alignment. Systems running less than 8 hours daily benefit from quarterly inspections, while high-use units need more frequent checks.

Routine Checks: Pressure, Temperature, Vibration, and Electrical Connections

Monitoring key parameters ensures early issue detection:

Infrared thermography of electrical panels during operation can identify loose connections before they lead to arc faults.

Cleaning Filters, Condenser Coils, and Pumps to Maintain Airflow and Efficiency

Clogged finned coils reduce heat rejection by 34%, a leading cause of compressor overload. Use CO₂ snow blasting for deep cleaning without damaging fins. In dusty environments, replace pleated filters every 90 days to maintain airflow.

Leveraging IoT Sensors for Real-Time Monitoring and Predictive Maintenance

Wireless vibration sensors on pumps detect bearing wear 6–8 weeks before failure. Refrigerant pressure transmitters identify leaks at less than 5% loss. Cloud-based dashboards automatically generate work orders when thresholds are exceeded, enabling proactive maintenance.

Data Insight: 40% Fewer Breakdowns with Bi-Monthly Maintenance (ASHRAE, 2022)

A three-year study of 217 air cooled mini chillers showed that units maintained every 60 days averaged 1.2 annual outages, compared to 2.1 for those serviced quarterly—demonstrating the impact of consistent, data-driven maintenance.

FAQ

• What are the key components of air cooled mini chillers?
  The key components include the compressor, condenser, evaporator, and expansion valve, which work together in a vapor compression cycle to cool the system.
• How do refrigerant pressure levels affect chiller efficiency?
  Maintaining proper refrigerant pressure levels is crucial for efficiency. Low suction pressure and high suction pressure can decrease cooling power and affect system performance.
• What are the common refrigerant and pressure issues in air cooled mini chillers?
  Common issues include low suction pressure due to refrigerant undercharge, evaporator fouling, blockages, and high suction pressure from overcharging or high ambient temperatures.
• How can routine maintenance prevent air cooled mini chiller breakdowns?
  Routine maintenance, including cleaning filters and coils, checking pressure and temperature, and leveraging IoT sensors, can prevent 78% of common failures and improve efficiency.
• What is the difference between air cooled and water-cooled chiller systems?
  Air cooled systems dissipate heat into the environment, while water-cooled systems rely on cooling towers and water treatment setups, requiring constant water quality checks.
